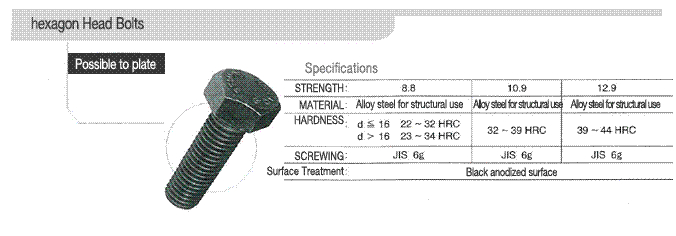

Hexagon Head Bolts

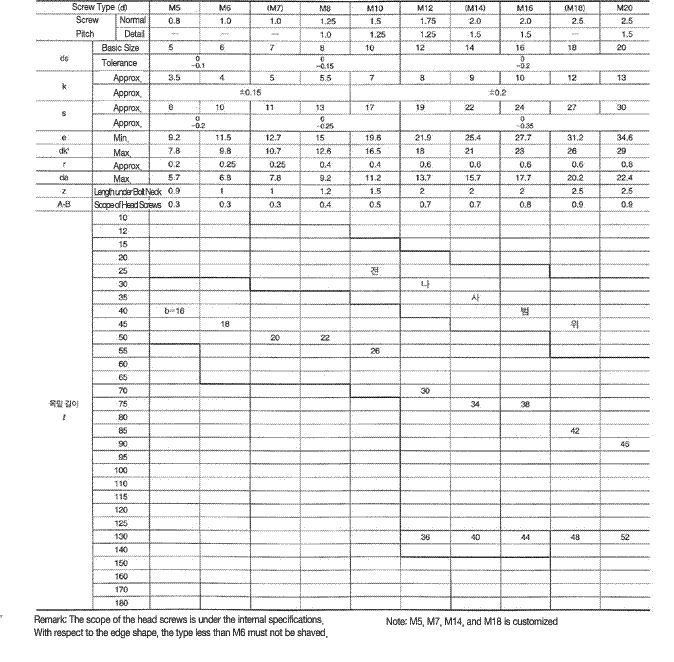

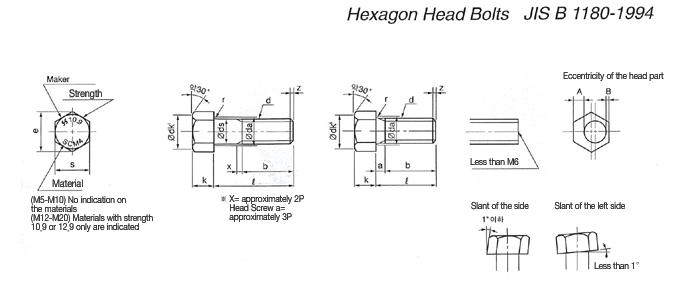

Dimension/Size of High Strength Hexagon Bolt(Based on Hexagon Bolts in JIS 1180-1994 Annex) Unit:mm

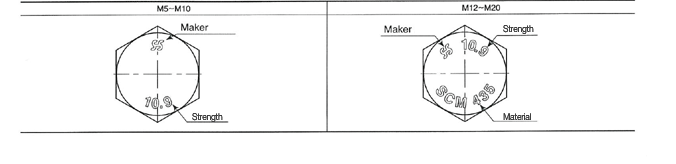

Indication of the Head of A Bolt

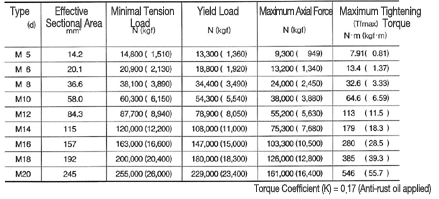

Tolerance of l Unit:mm Mechanical Nature and Maximal Tightening Torque of 10.9 High Strength Heaxgon Bolts
Tolerance of b Unit:mm
