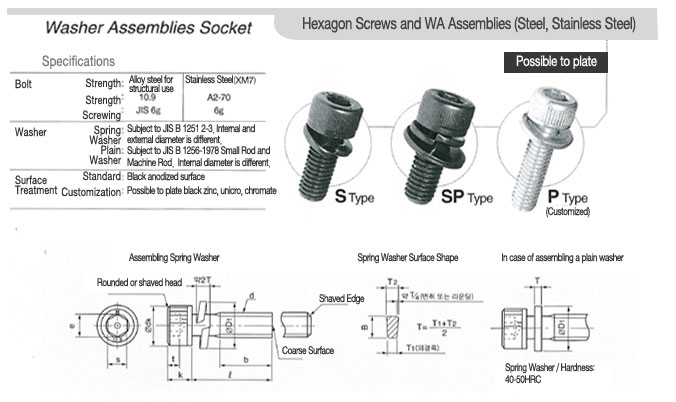

Hexagon Screws and WA Assemblies(Steel, Stainless Steel)

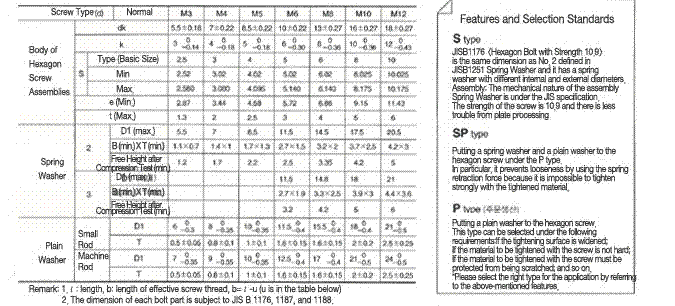

Dimension/Size of Hexagon Screws ans WA Assemblies Unit:mm

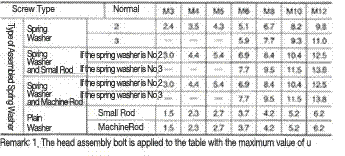

The dimension from the assembly bolt to the complete screw thread (u)
